The Radcliffe
Hidden stringer cantilever staircase
A hidden-stringer floating stair. The steelwork hides inside the wall itself, so thick solid-wood treads cantilever straight out of the finished wall with nothing visible holding them up. Open risers, no visible stringer, no support posts.
Specifications
Configuration: Straight run and other configurations — the stair runs along a wall

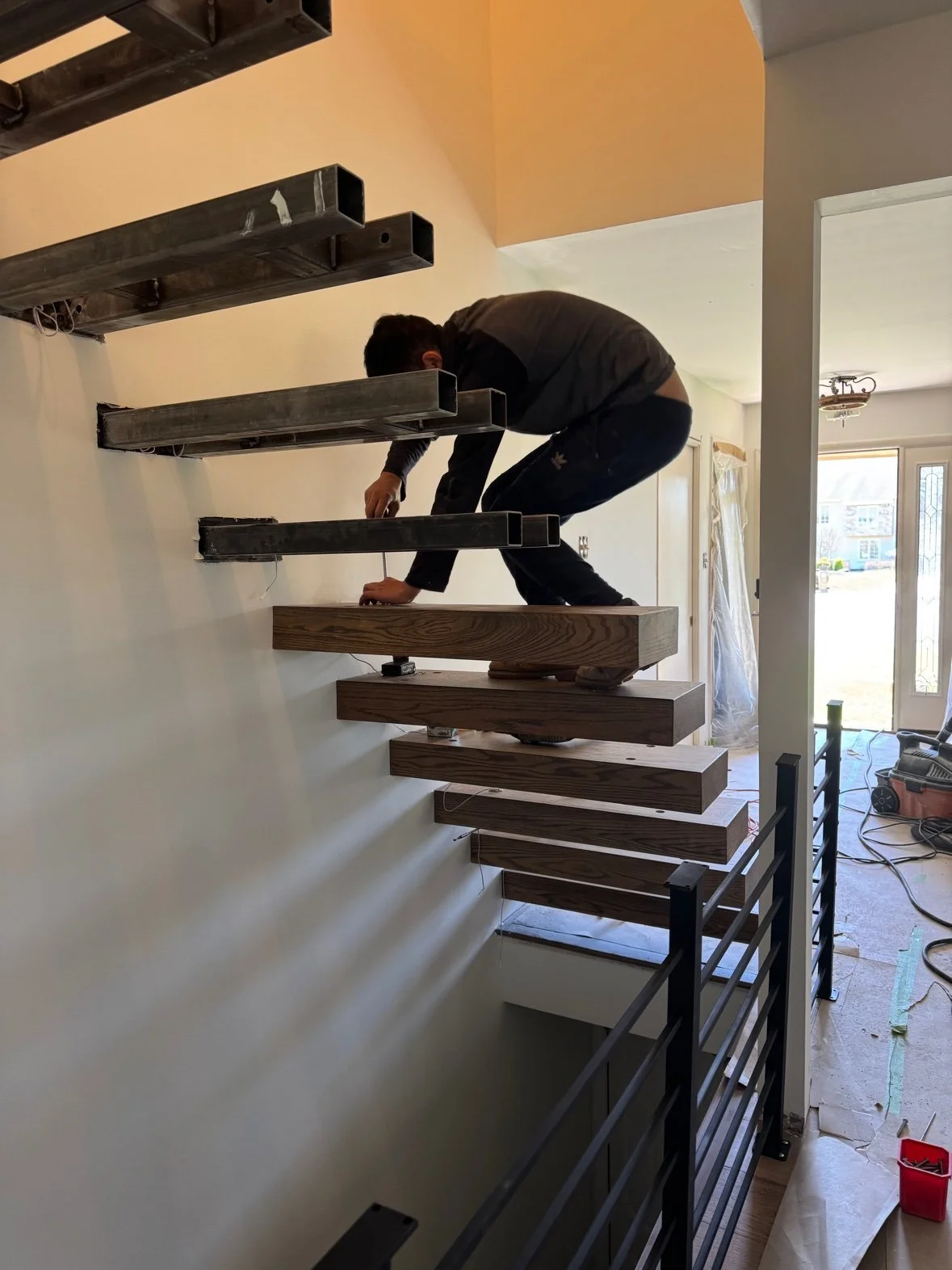

Structure: Steel beam concealed inside the wall; steel tread frames bolt to the beam and project from the finished wall

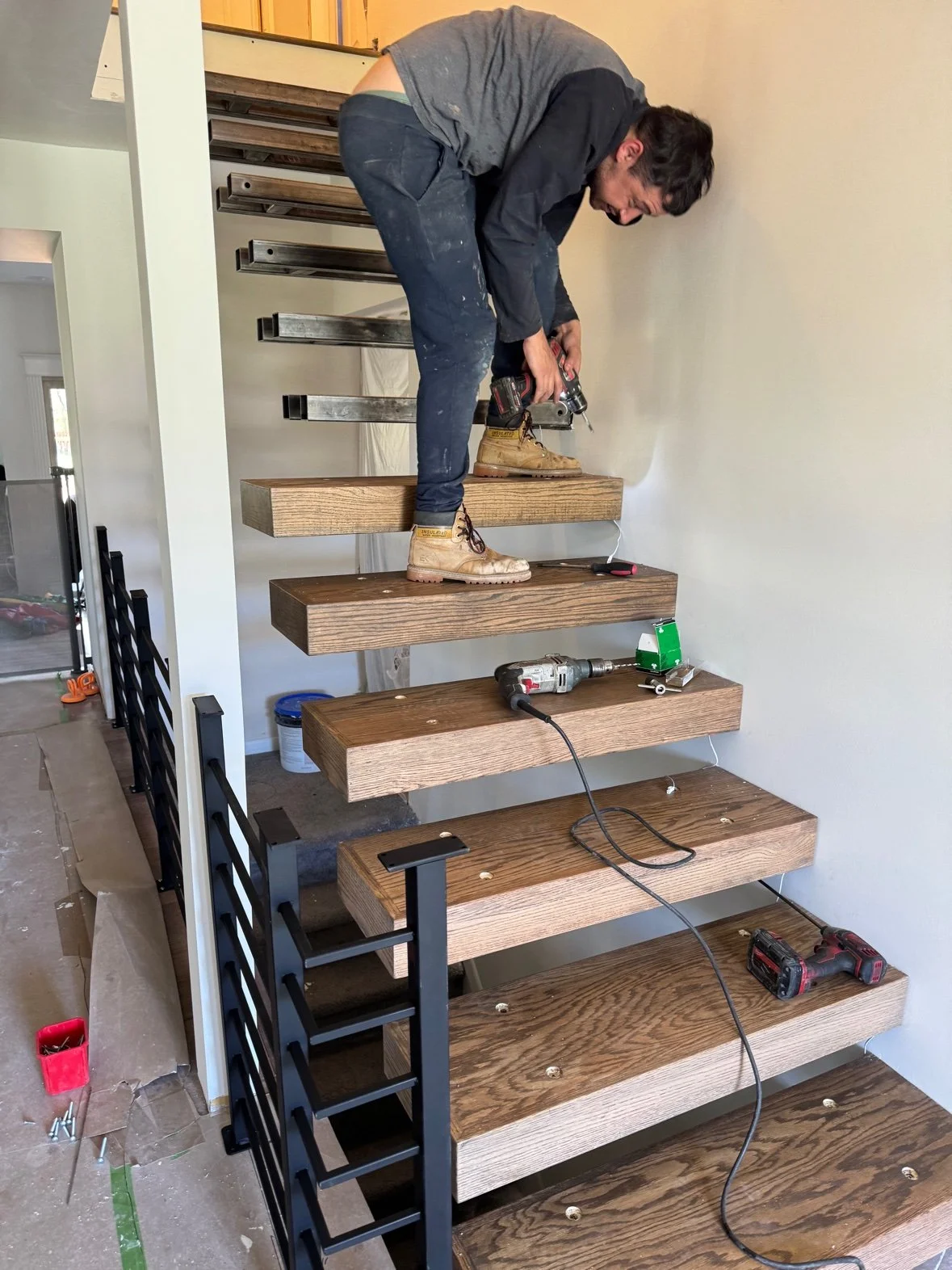

Treads: Thick solid-wood box treads that slide onto the steel tread frames and bolt on; open risers
Tread species: Red oak (shown), white oak, walnut, maple, hickory, ash; other species and special-order exotics available
Cuts & finish: Quarter-sawn and rift-sawn; supplied raw/unfinished or finished; stain matching available from a sample
What's in the box: Steel beam, tread frames, treads, and all assembly hardware; assembly instructions included
Lead time: 6–8 weeks
Railings: Not included — ordered separately; any CAPO Design railing can be paired with The Radcliffe
LED lighting: Optional under-tread LED lighting available as an add-on, ordered separately; activation is the buyer's choice — motion detector most common; cascading on/off effects available

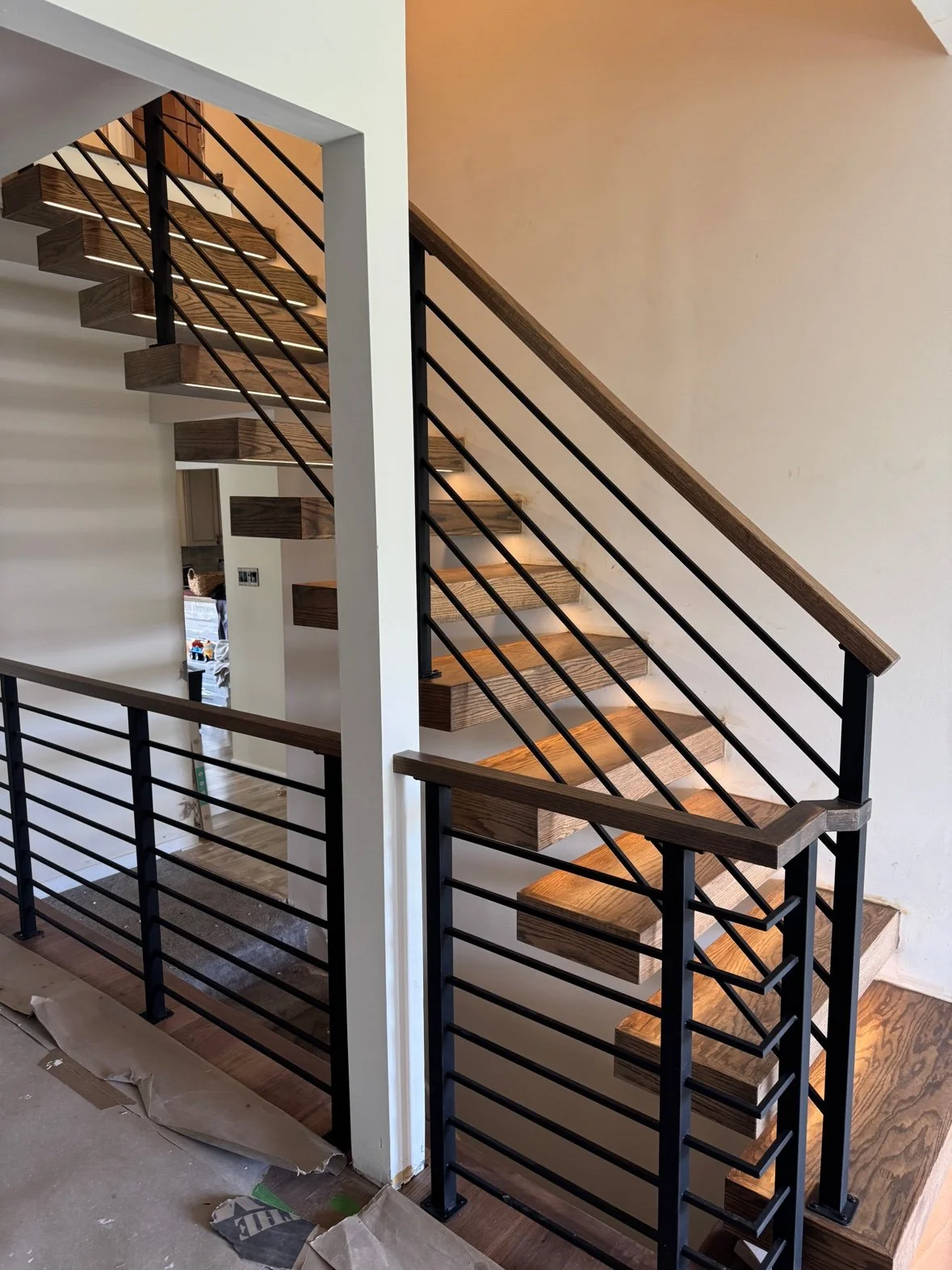

Flight with horizontal-bar railing and wood handrail, seen from the landing

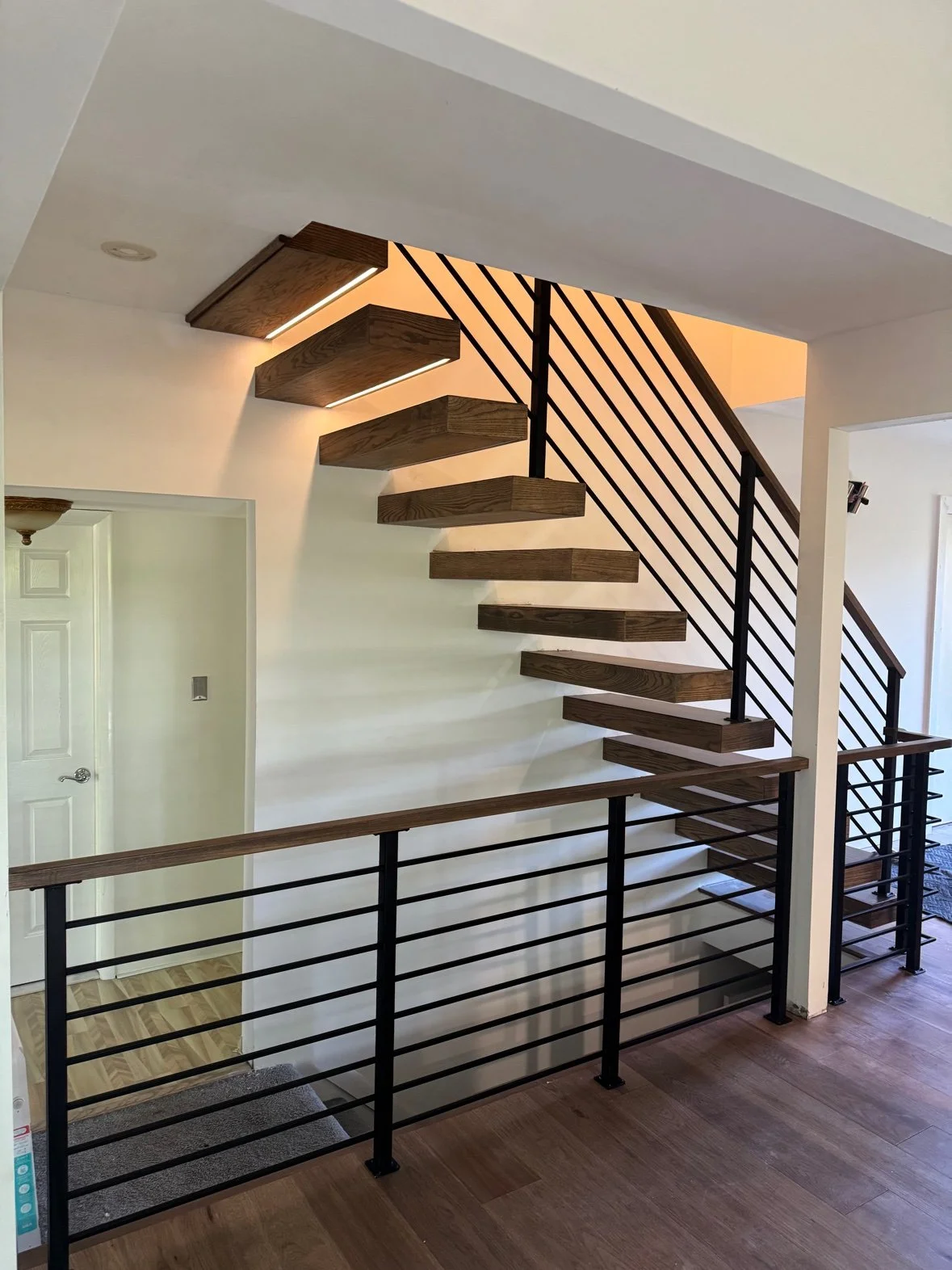

Full flight with landing railing and wood handrail

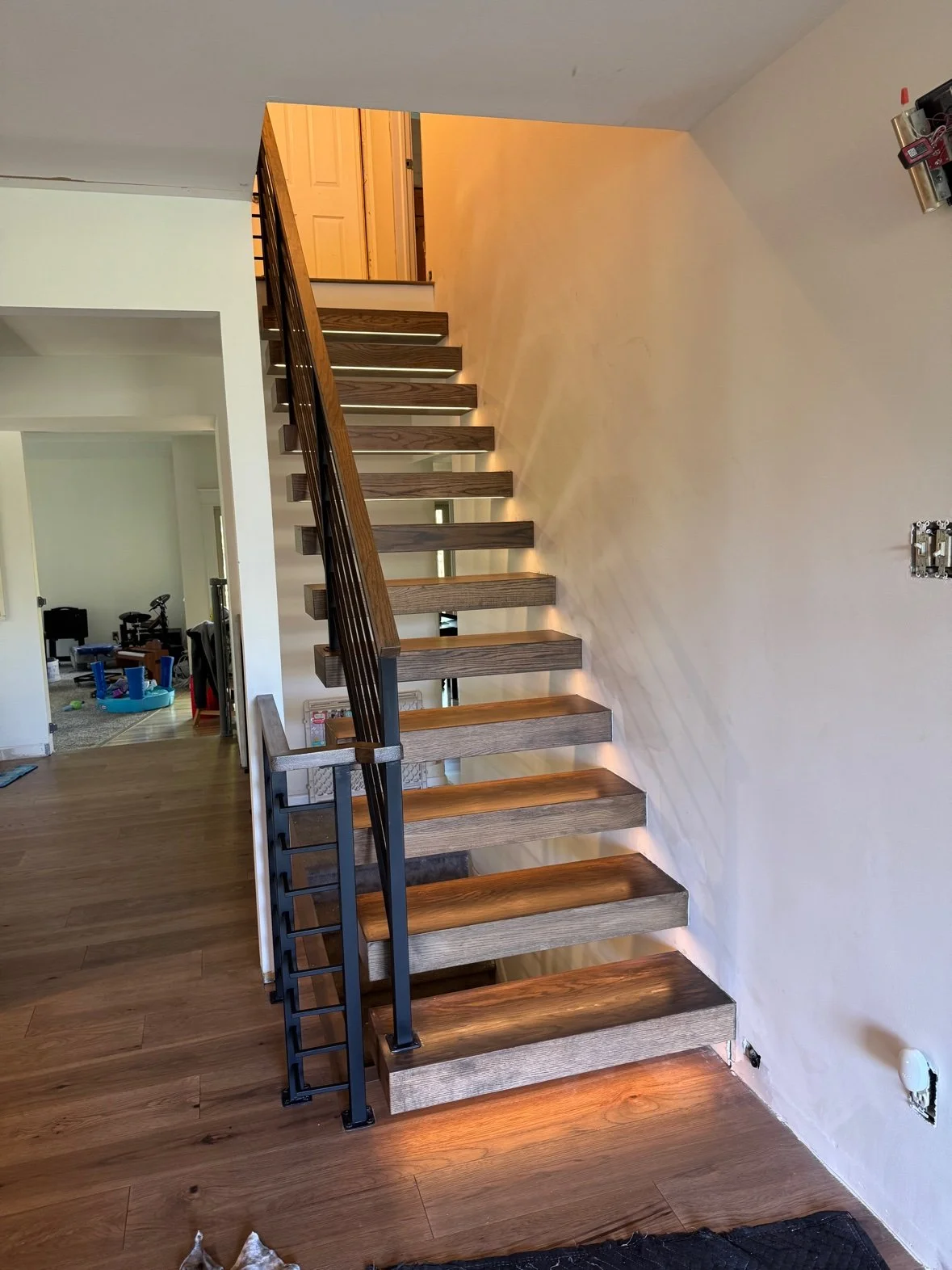

Flight along the wall, with wood treads and under-tread lighting

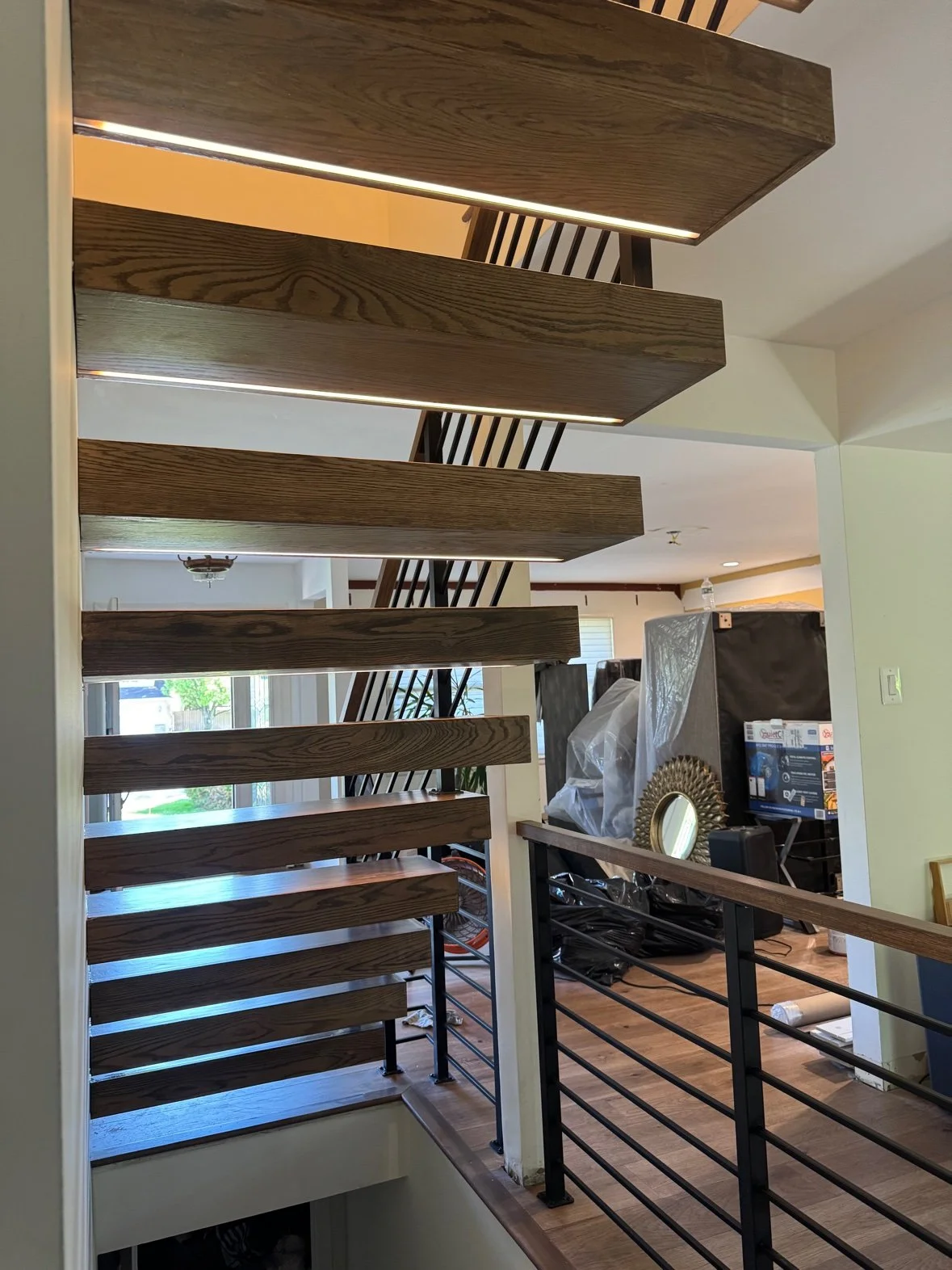

Thick wood treads with under-tread lighting, seen from the side

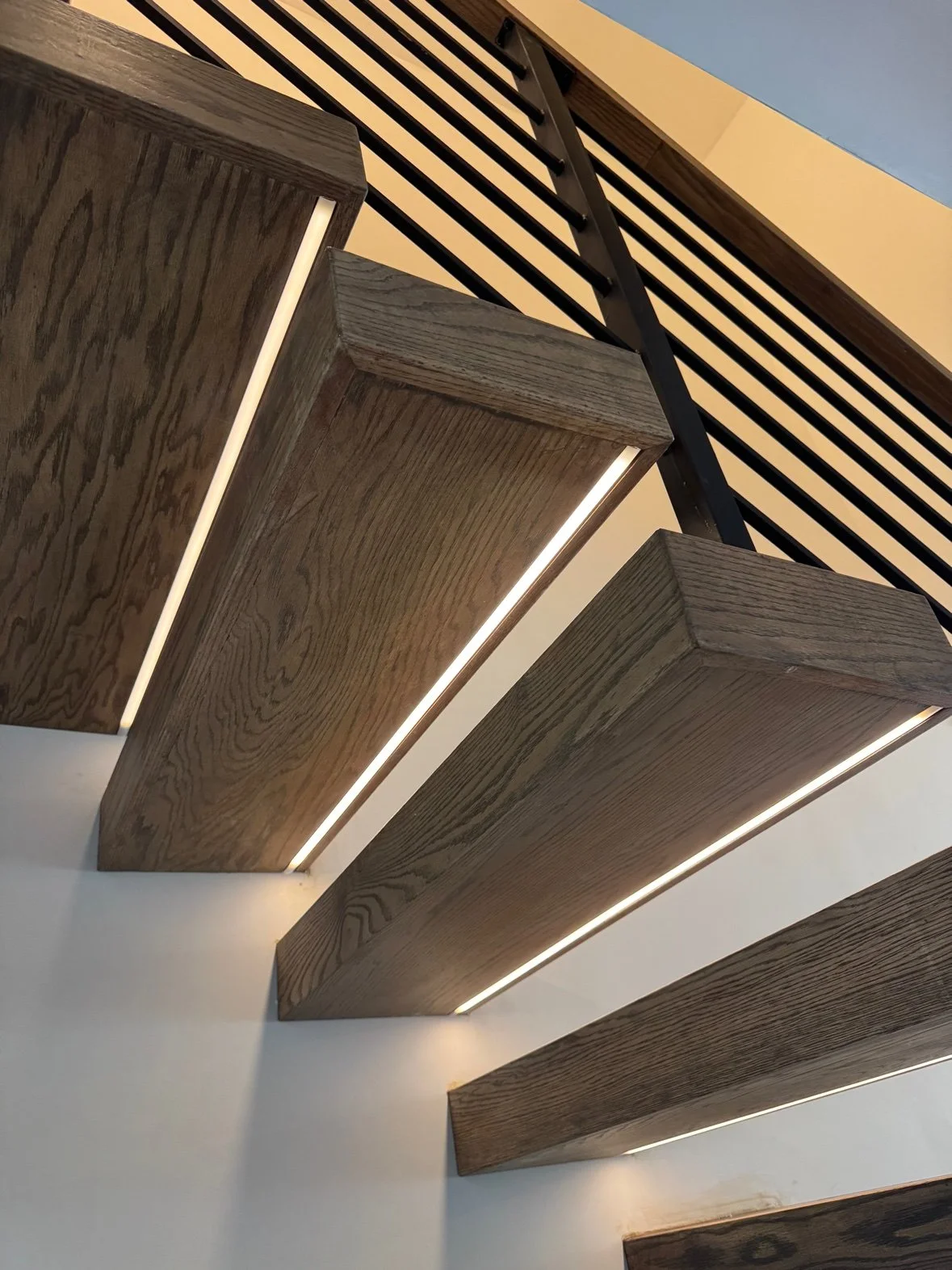

Under-tread LED lighting, close-up under the treads
HOW IT WORKS

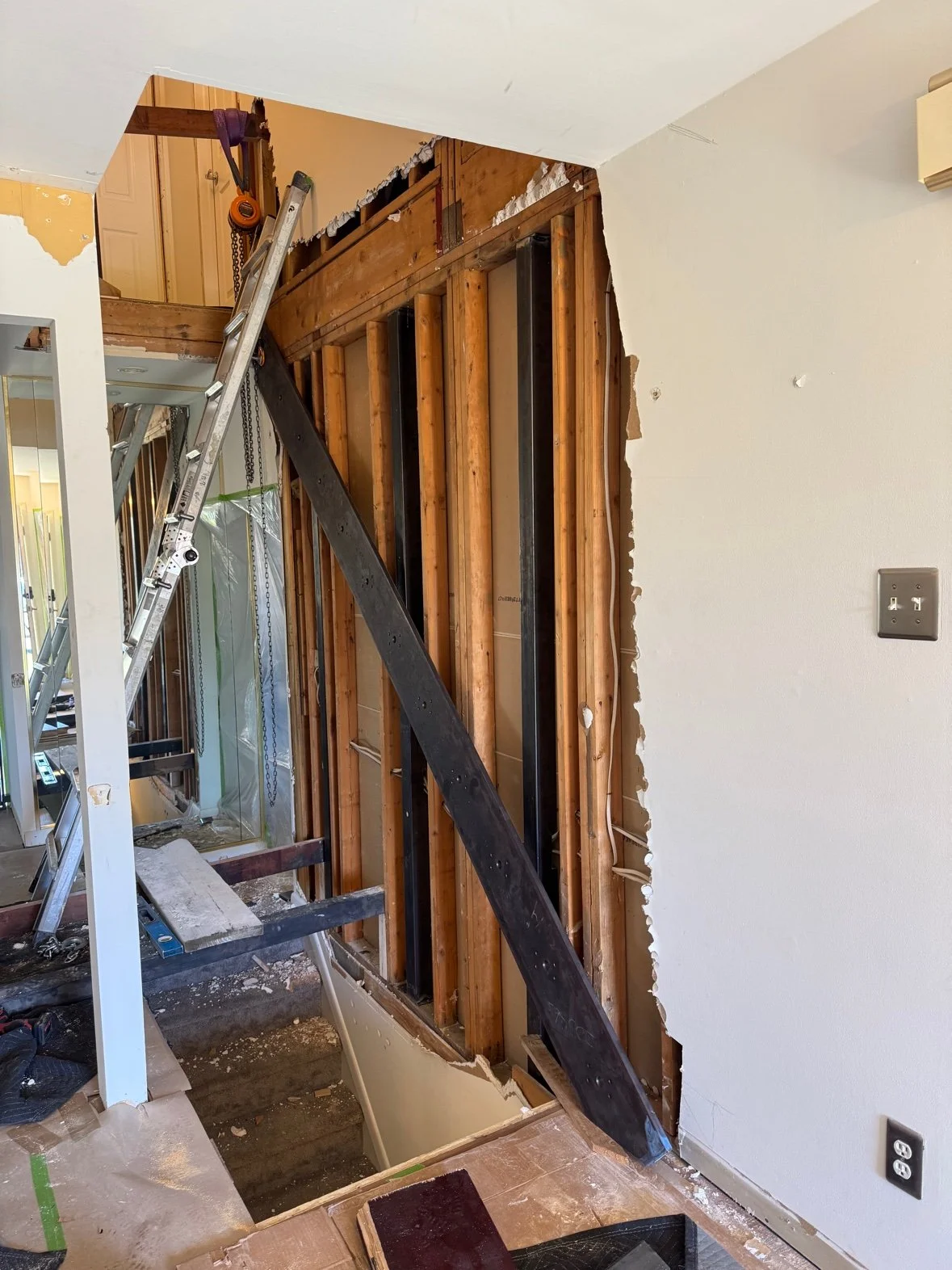

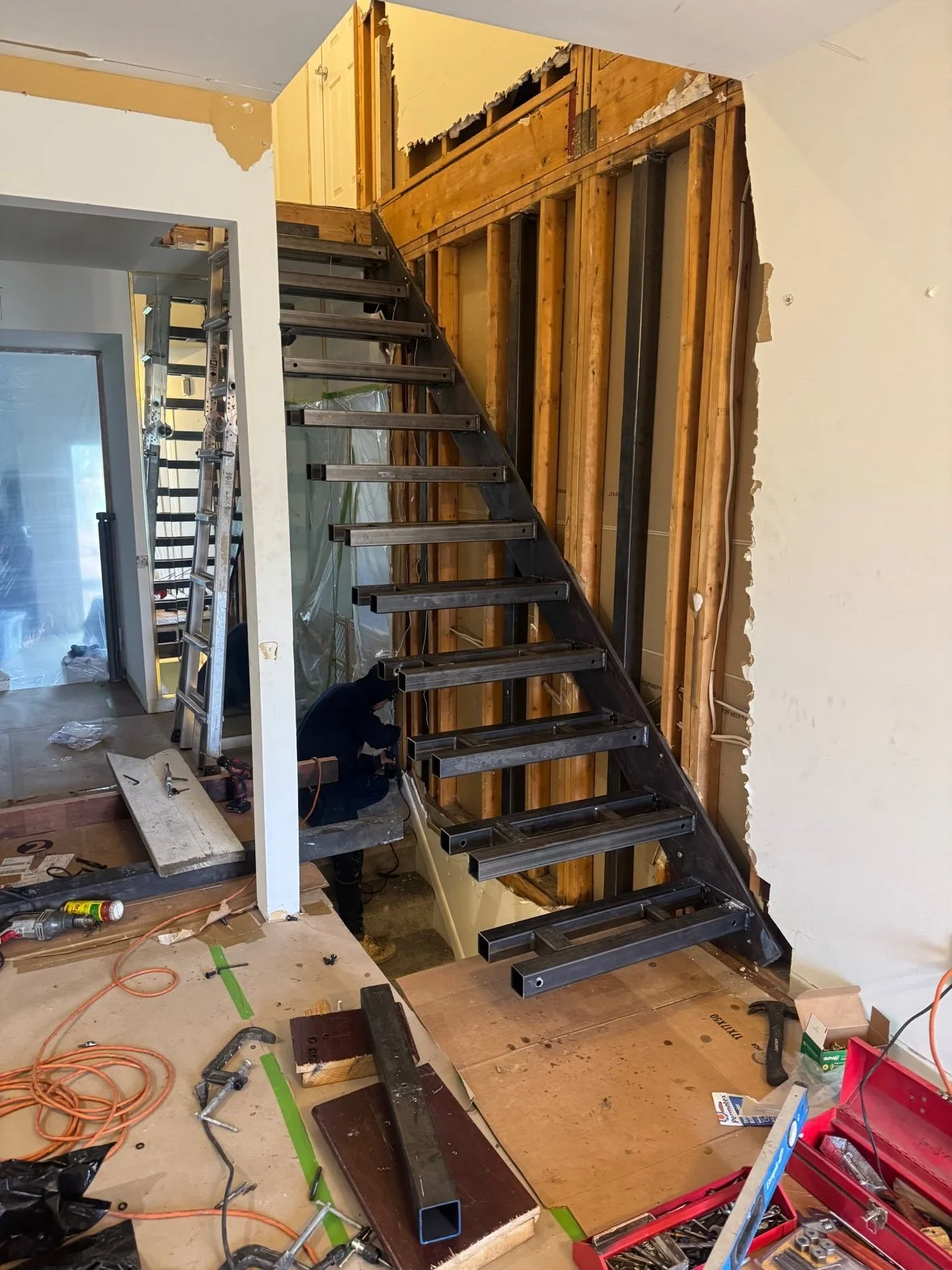

New construction: the steel beam, tread frames, and LED wiring are installed before the sheetrock — the wall finish is what conceals the steelwork. Existing homes: a contractor removes the sheetrock where the stair runs, the steel is installed, and the sheetrock is finished afterward.
A note on sales tax: A stair we install for you is priced as a construction job, with no sales tax line for you in Pennsylvania. A stair kit or railing system delivered to a Pennsylvania address is a product sale, so Pennsylvania sales tax applies at the rate for the delivery address — 6% statewide, 8% in Philadelphia, 7% in Allegheny County. Kits shipped to other states are taxed only where the law requires it. Your quote will show the tax once we know the delivery address.
